Driver LED Constant Voltage Pri:240V Sec:12V DC 0-75W

Technical Specification

Product Sheet

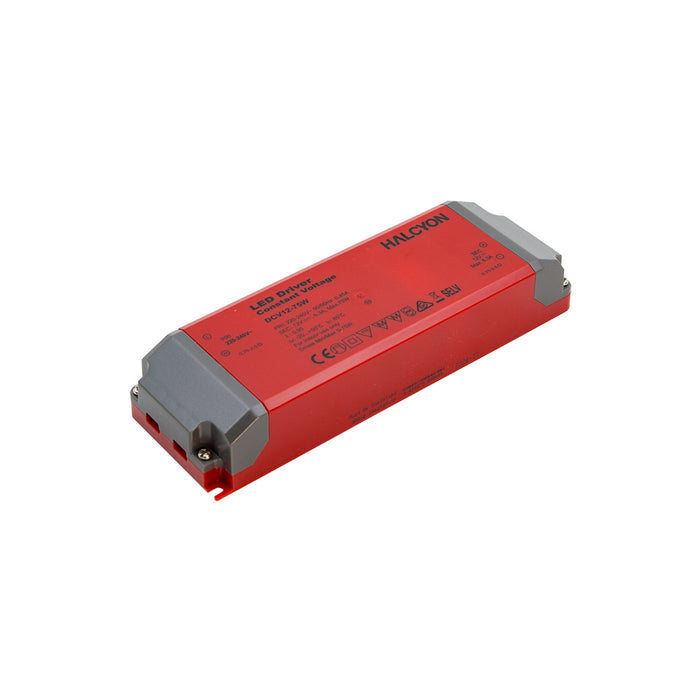

Model: DCC6300-IP20-12V-75W

Product Overview
The DCC6300-IP20-12V-75W is a reliable, non-dimmable LED driver designed for indoor use in low-voltage lighting systems. With a stable 12V DC output and a current range up to 6.3A, it is suitable for a variety of residential and commercial applications. Its compact, self-extinguishing plastic housing and IP20 rating ensure safe and efficient performance in dry environments.

Technical Specifications

• Power Output: 0W – 75W

• Input Voltage: 220–240V AC, 50/60Hz

• Output Voltage: 12V DC

• Output Current: 0 – 6.3A

• Dimming / Control: Non-Dimmable

• Electrical Class: Class II

• Ingress Protection: IP20

• Material: Self-extinguishing plastic housing

• Dimensions: 184 mm (Length) x 61 mm (Width) x 32 mm (Height)

Warranty
Supplied with a 5-year warranty, ensuring long-term reliability and performance under standard operating conditions.
