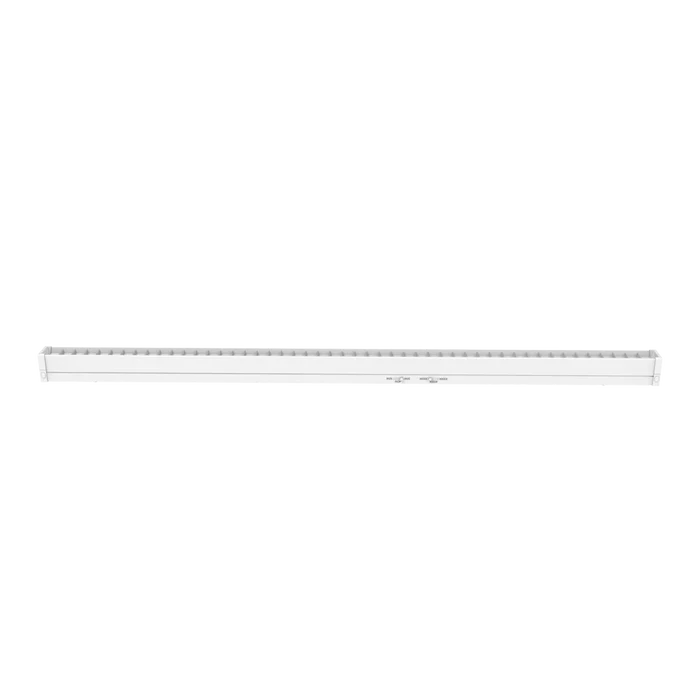

Educator - 5FT Low Glare Batten
Technical Specification
General:
• Application - Commercial
• Use - Interior
Electrical:
• Voltage - 230V
• Class - Class || (No Earth Required)
• Wattage - Selectable (30W | 40W | 50W)
• Ambient Operating Temperature - (-25° ~ +45°)
• Lumen Efficacy - 100lm/W(+/-5%)
• Lumen Maintenance(L70) - 50,000 Ta25°
• Power Factor - >0.9
• Dimmable - No
Photometrics:
• Lumens - 2900-5100lm(+/-5%)(refer below for details)
| 30W || 3K || 2900lm |
| 30W || 4K || 3100lm |
| 30W || 6.5K || 3100lm |
| 40W || 3K || 3760lm |
| 40W || 4K || 4100lm |
| 40W || 6.5K || 3930lm |
| 50W || 3K || 4640lm |
| 50W || 4K || 5100lm |
| 50W || 6.5K || 4900lm |
• SDCM<3
• UGR<19
• Beam Angle - 90°
• Colour Temperature - CCT Selectable (3000K | 4000K | 6500K)
• CRI - >90
• R9 Value - >50
Physical Size:
• Weight - 1.3kg
• Dimensions(mm) - 1483L x 67W x 73D
Material and Finish
• Material - PC + Iron
• Optics - Opal, with Grill reflector
• Colour - White
Product Info:
• Type - 5FT Low Glare Batten
• IP Rating - IP20
• IK Rating - IK08
