"Driver LED Constant Voltage Pri:240V Sec:12V DC 0-50W "

Technical Specification

Product Sheet

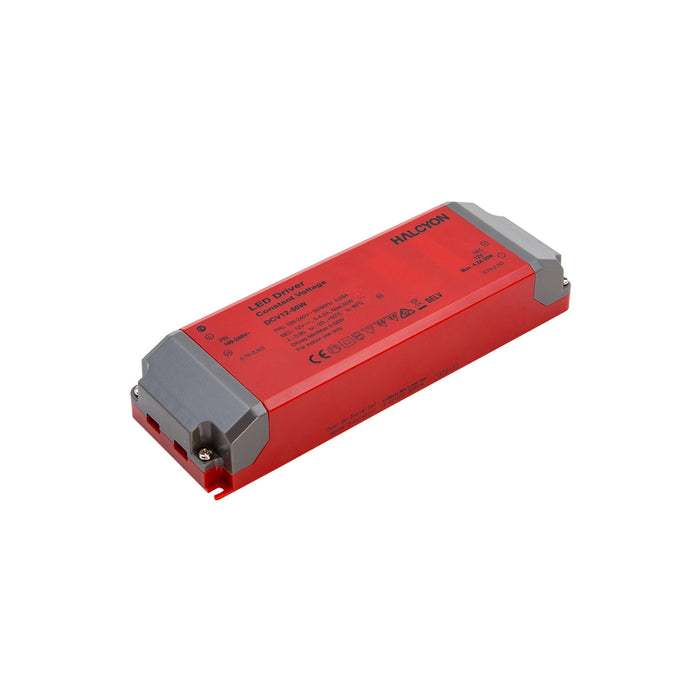

Model: DCC4200-IP20-12V-50W

Product Overview
The DCC4200-IP20-12V-50W is a compact, non-dimmable LED driver designed for low-voltage lighting applications. Offering a consistent 12V DC output and up to 4.2A of current, it is well-suited for indoor installations. The driver features a self-extinguishing plastic housing and meets Class II safety standards, making it a safe and efficient solution for residential and commercial environments.

Technical Specifications

• Power Output: 0W – 50W

• Input Voltage: 100–240V AC, 50/60Hz

• Output Voltage: 12V DC

• Output Current: 0 – 4.2A

• Dimming / Control: Non-Dimmable

• Electrical Class: Class II

• Ingress Protection: IP20

• Material: Self-extinguishing plastic housing

• Dimensions: 184 mm (Length) x 61 mm (Width) x 32 mm (Height)

Warranty
Backed by a 5-year manufacturer’s warranty covering defects in materials and workmanship under normal operating conditions.
