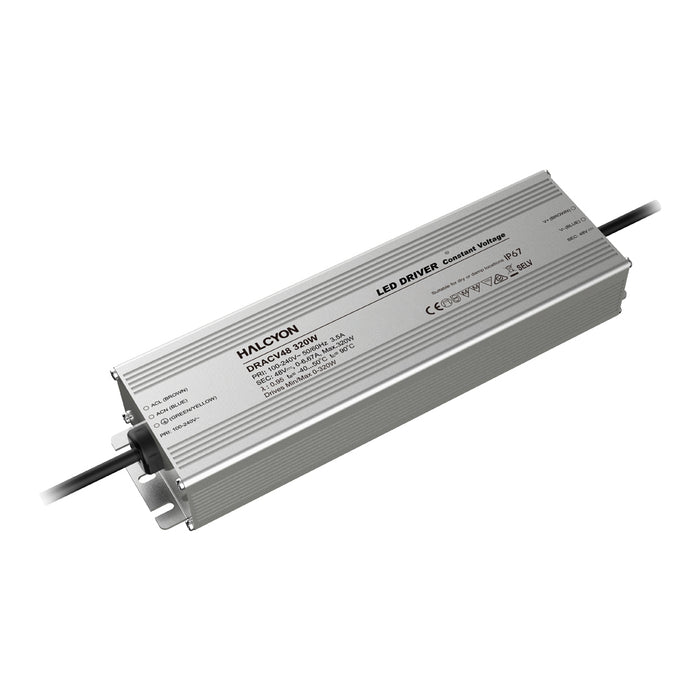

Driver CV Pri:240V Sec:48V DC 0-6.67A 0-320W IP67
Technical Specification
Product Overview
This high-power, non-dimmable LED driver is designed for demanding 48V applications, offering a wide power output range up to 320W. With a maximum output current of 6.67A and Class I electrical protection, it ensures safe and efficient operation. The IP67-rated housing provides robust protection against dust and water, making it ideal for both indoor and outdoor installations.
Specifications
-
Power Output: 0 – 320W
-
Input Voltage: 100–240V AC
-
Output Voltage: 48V DC
-
Output Current: 0 – 6.67A
-
Dimming / Control: Non-Dimmable
-
Ingress Protection: IP67
-
Electrical Class: Class I
-
Dimensions: 252 mm (L) x 90 mm (W) x 44 mm (H)
-
Warranty: 5-Year Warranty
