Design Standard Series X-Low Glare Downlight Tilt 10.5W 230mA CC IP54 IC-F/IC-4 c/w Casambi Driver 2700-6500K-Black

Technical Specification

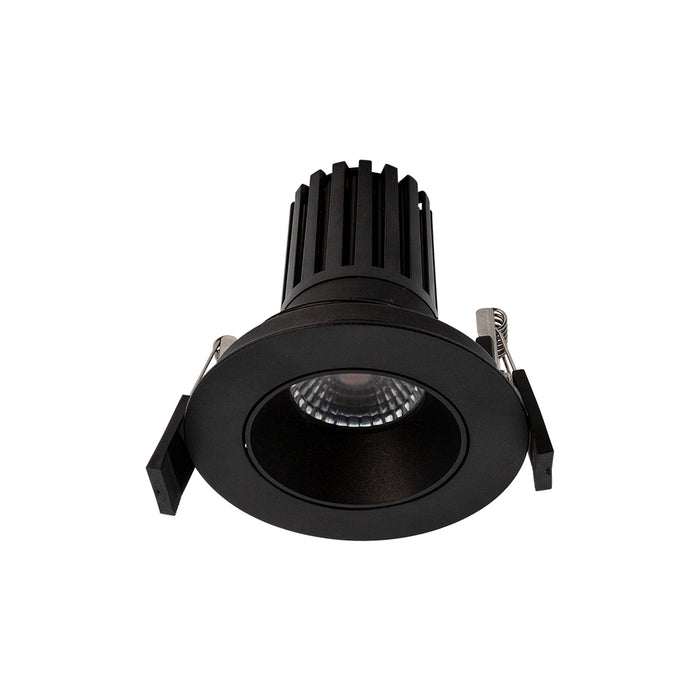

10.5W Casambi Tilt Downlight – Black Trim | Tunable White (2700K–6500K)

Electrical & Optical

• Wattage: 10.5W

• Colour Temperature: 2700K – 6500K (Tunable White)

• Lumens: <820lm (Refer to Spec Sheet)

• CRI: 90

• Beam Angle: 50°

• Lifespan: 55,000 hrs (L80)

• Driver Output Current: 230mA

• Electrical Class: Class II

• Dimming / Control: Casambi Smart Control

Mechanical & Build

• Cut Out: 85–92mm

• Diameter: 100mm

• Height: 101mm

• Tilt Angle: 32°

• Finish: Black

• Material: Aluminium, ADC12, PC

• Ingress Protection: IP54

• Classification: IC-F

  • Note: Driver must be installed above insulation

Installation & Features

• Driver: Casambi Constant Current Driver Included

• Features:

  • Smart Tunable White Control via Casambi

  • Precision Tilt Adjustment

• Warranty: 5 Years
