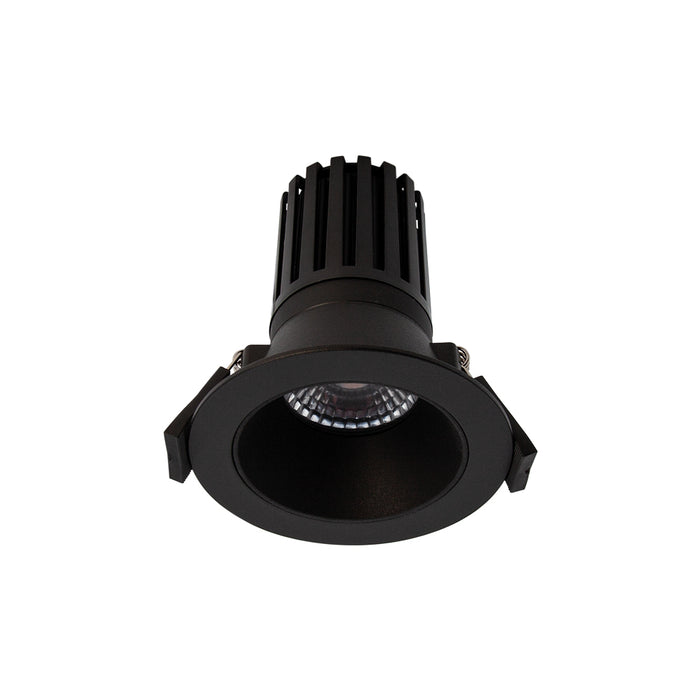

Design Standard 9.5W 2700K IP54 Recessed Downlight C/W UID Dimmable Driver 230mA CC - Black
Technical Specification
Product Specifications
Wattage: 9.5W
Cut Out: 72–82mm (suitable for retrofit applications)
Diameter: 93mm
Height: 104mm
Colour Temperature: 2700K Warm White
Lumen Output: 760lm
CRI: 90
Lifespan: 60,000 hours (L80 B30)
Beam Angle: 50°
Binning: SDCM 3
Finish: Black
Material: Aluminium, PC
Ingress Protection: IP54
Classification: IC-F / IC-4
Side Clearance (SCB): 0mm
Height Clearance (HCB): 0mm
Dimming / Control: Dimmable
Driver: Included (UID™ Under Insulation Dimmable Driver, pre-wired)
Driver Output Current: 230mA
Electrical Class: Class II
TLAs (Temporal Light Artifacts):
• Flicker-free
• PstLM = 1.0
• SVM = 0.4
Warranty: 5 Year Warranty
