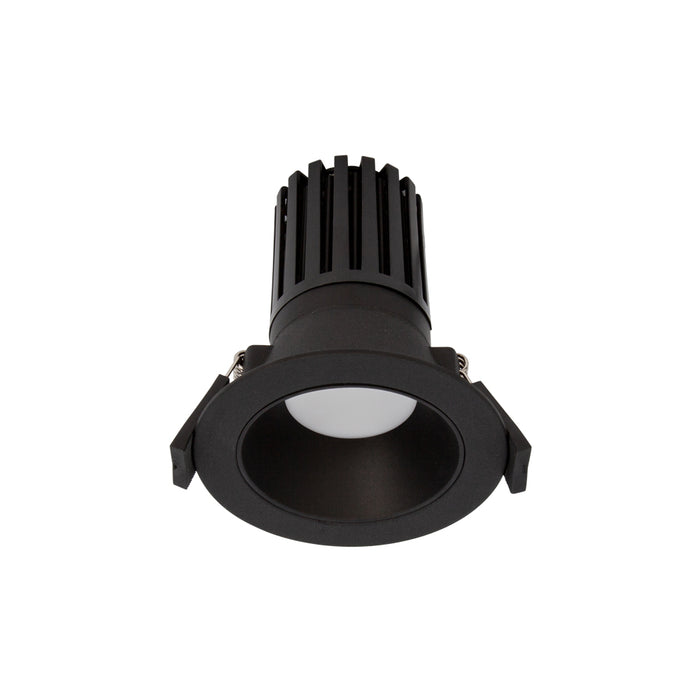

Design Standard 9.5W 230mA 4000K IP54 Recessed Downlight 90Deg c/w UID Dimmable Driver - Black
Technical Specification
Product Specification
-
Watts: 9.5W
-
Cut Out: 72–82mm (Suitable for Retrofit Applications)
-
Diameter: 93mm
-
Height: 104mm
Lighting Performance
-
Colour Temperature: 4000K Natural White
-
Lumens: 630lm
-
CRI: 90
-
Beam Angle: 90°
-
Binning: SDCM 3
-
Lifespan: 60,000hrs (L80 B10)
Construction & Finish
-
Finish: Black
-
Material: Aluminium, PC
-
Ingress Protection: IP54
-
Classification: IC-F / IC-4
-
SCB / HCB: 0mm / 0mm
Electrical & Control
-
Driver: Included (Pre-wired UID™ Under Insulation Dimmable Driver)
-
Driver Output Current: 230mA
-
Dimming / Control: Dimmable
-
Electrical Class: Class II
-
TLAs: Flicker-free, PstLM = 1.0; SVM = 0.4
Warranty
-
5 Year Warranty
