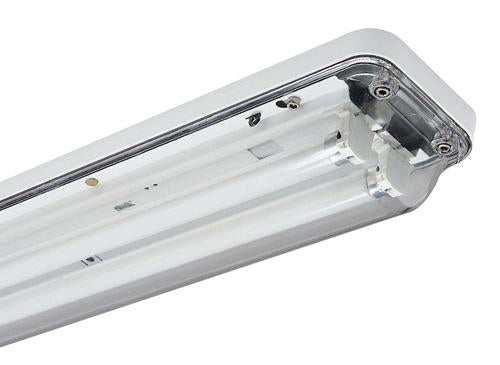

Pierlite Vandaguard T5 670 X 140 X 80 (mm)


Technical Specification

Low profile range of robust weatherproof fittings to withstand adverse or vandal prone environments.

– Pressure die-cast, low copper aluminium alloy body with powder coat paint finish in RAL 8301 grey

– Models can be customised to suit specific applications, environments and operational criteria

– Optional prismatic, clear or opalised lens covers in polycarbonate or acrylic polymers

– White powder-coated gear tray has screw locators and lanyards for ease of maintenance

– Replaceable single piece EPDM gasket ensures the high IP66 rating

– Cable entry via centre of the base

- Dimension(mm): 670 x 140 x 80

- Mass(kg):

  • 2 x 14W T5 EL - 4.7kg
  • 2 x 18W T5 HPF  - 5.0kg

Quick Spec

Pierlite Vandaguard with a low profile die-cast LM6 aluminium body and polycarbonate lens in prismatic, clear or opal options, with integral fluorescent lamp and gear.



– Prison cells

– Railway stations

– Transport terminals

– Subways

– Undercover walkways

– Covered carparks

– Mining and industrial sites
