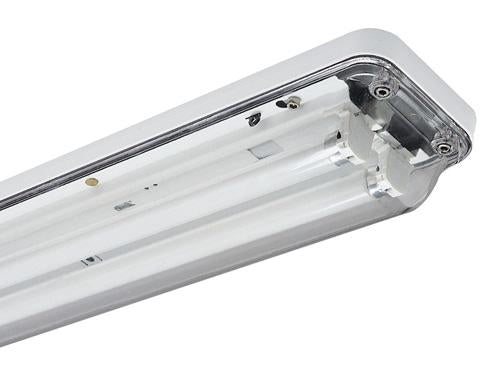

Pierlite Vandaguard T5 El 1310 X 140 X 80/60 (mm)
Technical Specification
Low profile range of robust weatherproof fittings to withstand adverse or vandal prone environments.
– Pressure die-cast, low copper aluminium alloy body with powder coat paint finish in RAL 8301 grey
– Models can be customised to suit specific applications, environments and operational criteria
– Optional prismatic, clear or opalised lens covers in polycarbonate or acrylic polymers
– White powder-coated gear tray has screw locators and lanyards for ease of maintenance
– Replaceable single piece EPDM gasket ensures the high IP66 (Water Resistant) rating
– Cable entry via centre of the base
- Mass(kg):
- 1310 x 140 x 80 - 6.7kg
- 1310 x 140 x 60 - 7.2kg
Quick Spec
Pierlite Vandaguard with a low profile die-cast LM6 aluminium body and polycarbonate lens in prismatic, clear or opal options, with integral fluorescent lamp and gear.
APPLICATIONS:
– Prison cells
– Railway stations
– Transport terminals
– Subways
– Undercover walkways
– Covered carparks
– Mining and industrial sites
