Philips UV Purification| Big UVCA210 Air Disinfection Unit| Kills 99% Germicides Including Delta and Omicron Variants of Covid-19 Virus
Technical Specification
UV-C disinfection air unit
G2 UVCA210 G01 4 pcs - 220 to 240 V - 50 to 60 Hz - Safety class II (II) - - - -

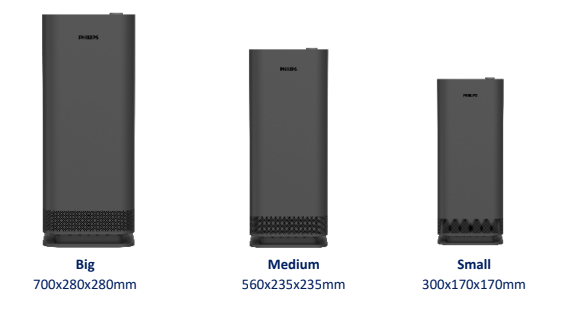

Philips UV-C air disinfection unit is a comprehensive solution to address airborne transmission of pathogens. It reduces airborne pathogens by greater than 99.99%.The UV-C unit is resistantly designed with extra supportive metal structure inside disinfection chamber. The aesthetic design delivers well-controlled UV-C radiation (RG0) and can also be used when people are present. The family comes in three disinfecting capacities, which is ideal for all the indoor professional applications.
General information
| Number of light sources |
4 pcs
|
| Beam angle of light source |
- °
|
| Number of gear units |
1 unit
|
| Gear |
-
|
| Optic type |
-
|
| Luminaire light beam spread |
-
|
| Control interface |
-
|
| Connection |
Plug-in connector 2-pole
|
| Cable |
Cable 1.8 m without plug
|
| Protection class IEC |
Safety class II
|
| Glow-wire test |
Temperature 750 °C, duration 5 s
|
| Flammability mark |
-
|
| CE mark |
-
|
| ENEC mark |
-
|
| Warranty period |
1 years
|
| Number of products on MCB of 16 A type B |
-
|
| Photobiological risk |
Photobiological risk group 0 @ 200mm to EN62471
|
| EU RoHS compliant |
Yes
|
Operating and electrical
| Input Voltage |
220 to 240 V
|
| Input Frequency |
50 to 60 Hz
|
| Inrush current |
31 A
|
| Inrush time |
520 ms
|
| Power Factor (Min) |
0.95
|
Controls and dimming
| Dimmable |
No
|
| Housing Material |
Plastic
|
| Reflector material |
-
|
| Optic material |
-
|
| Mounting device |
-
|
| Overall length |
280 mm
|
| Overall width |
280 mm
|
| Overall height |
700 mm
|
| Color |
Gray
|
| Ingress protection code |
-
|
| Mech. impact protection code |
-
|
| UV-C irradiance defined at 0.2m |
0.1 µW/cm²
|
Initial performance (IEC compliant)
| Initial input power |
16 W
|
| Power consumption tolerance |
+/-10%
|
| Ambient temperature range |
+5 to +40 °C
|
| Performance ambient temperature Tq |
25 °C
|
| Maximum dim level |
0% (digital)
|
| Suitable for random switching |
Not applicable
|
Warnings and Safety
• Our UV-C Products are not meant to be used in applications or activities which may cause and/or lead to death, personal injury
and/or damage to the environment.
• This UV-C product is intended to be used for the disinfection of indoor air.
• This UV-C product is not approved and/or certified as a medical device.
• The back cover must be closed properly before disinfection, otherwise the UVC lamp won’t work.
• Product is designed to avoid any kind of UV-C leakage, in case there is a leakage due to product damage or similar incident,
please stop using and report back to Signify sales representatives. Signify will not be responsible for any accidents/injuries
caused by exposure to UV C light.
• Please contact manufacture or its maintenance department and other similar professionals for repair. When the product is
working normally, the UV C radiation at 200mm from the product is less than 1mW/m. If the power cord is damaged, it must be
replaced with a dedicated cord or with a dedicated component purchased from its manufacturer or maintenance department.
• UV-C exposed luminaire parts (other than metal parts), like Lamp holder, end cap etc. might change colour after a certain period
of usage due to the UV C light property.
• UV-C light emitted from UVC lamp is much 'stronger' than normal sunlight and can cause a severe sunburn like reaction to your
skin, and similarly, could damage the retina of your eye, if exposed.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• In case of accidental breakage of the lamp tube, it should be ventilated for 30 minutes first.
• Please remove the debris with gloves, put it in a sealed plastic bag and take it to a local waste disposal site for safe disposal
